| CPU | AMD Socket sTRX4 for 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop Processors Refer to www.asus.com for CPU support list |
| Chipset | AMD TRX40 |
| Bộ nhớ | 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors |
| 8 x DIMM, Max. 256GB, DDR4 3200/2933/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory | |
| Multi-GPU Support | Supports NVIDIA® 2-Way SLI® Technology |
| Supports AMD 2-Way CrossFireX Technology | |
| Expansion Slots | 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors |
| 4 x PCIe 4.0 (x16, x16/x16, x16/x8/x16, x16/x8/x16/x8) | |
| Storage | 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors : |
| 1 x ROG DIMM.2 Module supports 2 M.2 Socket 3 , with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) | |
| 2 x M.2 Socket 3, with M Key, type 2242/2260/2280 (PCIe 4.0 x4 mode)*1 | |
| 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors : | |
| 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 (PCIe 4.0 x4/x2 mode)*2 | |
| Support Raid 0, 1, 10 | |
| AMD TRX40 chipset : | |
| 4 x SATA 6Gb/s port(s), | |
| ASMedia® SATA 6Gb/s controller : | |
| 4 x SATA 6Gb/s port(s), | |
| LAN | Intel® I211-AT, 1 x Gigabit LAN Controller(s) |
| Aquantia AQC-107 10G | |
| Anti-surge LANGuard | |
| ROG GameFirst V Technology | |
| Wireless Data Network | Intel® Wi-Fi 6 AX200 |
| Wi-Fi 802.11 ax, Bluetooth® 5.0 | |
| Supports dual band frequency 2.4/5 GHz | |
| Supports 2x2 MU-MIMO | |
| Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed | |
| Audio | ROG SupremeFX 8-Channel High Definition Audio CODEC S1220 |
| - Impedance sense for front and rear headphone outputs | |
| - Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking | |
| - High quality 120 dB SNR stereo playback output 108 dB SNR recording input | |
| - ESS® ESS9018Q2C | |
| Audio Feature : | |
| - SupremeFX Shielding™ Technology | |
| - Sonic Studio III + Sonic Studio Virtual Mixer | |
| - DTS® Sound Unbound | |
| LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. | |
| - Sonic Radar III | |
| USB Ports | 3rd Gen AMD Ryzen™ Threadripper™ Processors : |
| 4 x USB 3.2 Gen 2 port(s) (4 at back panel, red) | |
| AMD TRX40 chipset : | |
| 2 x USB 3.2 Gen 2 front panel connector port(s) | |
| AMD TRX40 chipset : | |
| 3 x USB 3.2 Gen 2 port(s) (3 at back panel, red, 2 x Type-A+1 x Type-C) | |
| AMD TRX40 chipset : | |
| 3 x USB 2.0 port(s) | |
| ASMedia® USB 3.2 Gen 1 controller : | |
| 8 x USB 3.2 Gen 1 port(s) (4 at back panel, blue) | |
| ASMedia® USB 3.2 Gen2x2 controller : | |
| 1 x USB 3.2 Gen 2x2 (up to 20Gbps) port(s) (1 at back panel, , Type-C) | |
| ROG Exclusive Features | ROG Exclusive Software |
| - RAMCache III | |
| - CPU-Z | |
| - GameFirst V | |
| - Sonic Studio III + Sonic Studio Link | |
| - Sonic Radar III | |
| - Overwolf | |
| Special Features | ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : |
| - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App | |
| Gamer's Guardian: | |
| - DRAM Overcurrent Protection | |
| - 10K Black Metallic Capacitors | |
| - DIGI+ VRM | |
| - SafeSlot | |
| - ESD Guards on LAN, Audio,and USB ports | |
| LiveDash OLED 1.77 ” | |
| AURA : | |
| - Aura Lighting Control | |
| - Aura RGB Strip Headers | |
| - Addressable Gen 2 Header | |
| ASUS Exclusive Features : | |
| - AI Suite 3 | |
| - Ai Charger+ | |
| - Pre-mounted I/O Shield | |
| - ASUS EZ Flash 3 | |
| - ASUS C.P.R.(CPU Parameter Recall) | |
| - BIOS FlashBack™ Button | |
| - Clear CMOS Button | |
| ASUS Q-Design : | |
| - ASUS Q-Code | |
| - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED) | |
| - ASUS Q-Slot | |
| - ASUS Q-DIMM | |
| - ASUS Q-Connector | |
| Digi+VRM | |
| MemOK! II | |
| Armoury Crate | |

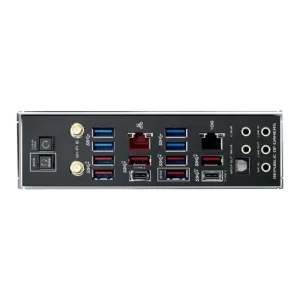

| Back I/O Ports | 1 x LAN (RJ45) port(s) |
| 1 x USB 3.2 Gen 2x2 (up to 20Gbps) ports (Type-C) | |
| 4 x USB 3.2 Gen 1 blue | |
| 5 x USB 3.2 Gen 2 (red) (3 x Type-A+1 x Type-C) | |
| 1 x Optical S/PDIF out | |
| 1 x Clear CMOS button(s) | |
| 5 x LED-illuminated audio jacks | |
| 1 x Aquantia AQC-107 10G LAN port | |
| 1 x USB BIOS FlashBack™ Button(s) | |
| Internal I/O Ports | 2 x Aura RGB Strip Header |
| 2 x Addressable Gen 2 header(s) | |
| 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) | |
| 2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s) | |
| 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices(support PCIe 4.0 x4 mode) | |
| 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices(support PCIe 4.0 x4/x2 mode) | |
| 1 x TPM header | |
| 8 x SATA 6Gb/s connector(s) | |
| 1 x CPU Fan connector(s) | |
| 1 x CPU OPT Fan connector(s) | |
| 2 x Chassis Fan connector(s) | |
| 1 x H_AMP fan connector | |
| 2 x W_PUMP+ connector | |
| 1 x WB_SENSOR | |
| 1 x 6-pin EATX 12 V Power connector | |
| 1 x 24-pin EATX Power connector(s) | |
| 2 x 8-pin EATX 12V Power connectors | |
| 1 x 4-pin EZ_PLUG Power connector(s) | |
| 1 x Front panel audio connector(s) (AAFP) | |
| 7 x ProbeIt Measurement Points | |
| 1 x BIOS Switch button(s) | |
| 1 x Node Connector(s) | |
| 1 x LN2 Mode jumper(s) | |
| 1 x Safe Boot button | |
| 1 x ReTry button | |
| 1 x W_IN header | |
| 1 x W_OUT header | |
| 1 x W_FLOW header | |
| 2 x USB 3.2 Gen 2 front panel connector | |
| 1 x Speaker connector | |
| 1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110) | |
| 1 x RSVD Switch | |
| 1 x Start button | |
| 1 x FlexKey button | |
| 1 x FS Mode switch | |
| 1 x M.2_3 cold storage Switch | |
| 1 x Chipset Fan Header | |
| 1 x VRM_HS_FAN Header | |
| 1 x M.2 socket pre-installed with a Wi-Fi/Bluetooth module | |
| BIOS | 2 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2 |
| Hệ điều hành | Support for Windows 10 64-bit |
| Kích Thước | Extended ATX Form Factor 12.2 inch x 10.9 inch ( 31 cm x 27.7 cm ) |
